PAUT, TOFD and Guided-Wave Governance

Learning outcomes

By the end of this chapter, the learner should be able to explain the measurement principles of PAUT, TOFD and guided waves; compare detection and sizing strengths and limitations; identify additional essential variables for advanced systems; prevent image presentation from outrunning physical evidence; and define when complementary techniques are appropriate.

9.1 Phased array ultrasonic testing

PAUT uses multiple connected elements and controlled transmit-receive delays to steer, focus or translate an ultrasonic aperture. A focal law defines the delay pattern for one beam. Sectorial scans vary angle; electronic linear scans move an aperture along the array; compound and matrix arrangements combine additional dimensions.

Added variables include element pitch, active aperture, wedge geometry, element assignment, focal law, steering range, focus, grating-lobe risk, acquisition rate, encoder calibration, data views and reconstruction settings. PAUT is governed by the same reflection, attenuation and orientation physics as conventional UT. It creates more controlled beams and more data; it does not turn every reflector into a photograph.

9.2 Time-of-flight diffraction

TOFD normally uses a pitch-catch probe pair on opposite sides of a weld. A lateral wave travels near the inspection surface, a backwall signal travels through the full thickness, and crack tips can generate diffracted responses. Tip transit times can support through-wall height measurements with less dependence on specular amplitude than conventional echo-amplitude sizing.

Limitations include near-surface and backwall dead zones, lateral-wave and backwall obscuration, geometry responses, mode-converted signals, probe-centre separation sensitivity and dependence on accurate thickness and velocity. TOFD may have high detection reliability for many through-wall-oriented flaws but is not equally sensitive to every orientation or condition.

9.3 Guided-wave testing

Guided waves propagate along structures because boundaries constrain the wave field. A single transducer ring can screen long pipe lengths, but multiple modes, dispersion, coatings, supports, branches, buried interfaces and temperature complicate interpretation. Guided-wave testing is generally a screening method: it identifies areas for follow-up rather than directly providing a complete local flaw characterisation.

Mode selection requires dispersion information and a controlled frequency range. Sensitivity is commonly influenced by change in cross-sectional area and circumferential extent, but response is also strongly affected by feature geometry and mode conversion.

9.4 Complementary deployment

PAUT can provide oriented pulse-echo coverage and encoded imaging; TOFD can add tip-diffraction-based height information; conventional probes may verify particular responses; guided waves may screen inaccessible pipe runs before local examination. Combining techniques is valuable only when each has a defined role. Collecting several data sets without a reconciliation rule produces more files, not more certainty.

9.5 Data integrity

Advanced systems require configuration control, raw-data retention, software version traceability, encoder verification, focal-law or setup review, processing history and backup. Any post-processing that changes smoothing, colour mapping, gates, projections or reconstruction should be distinguishable from raw acquisition settings.

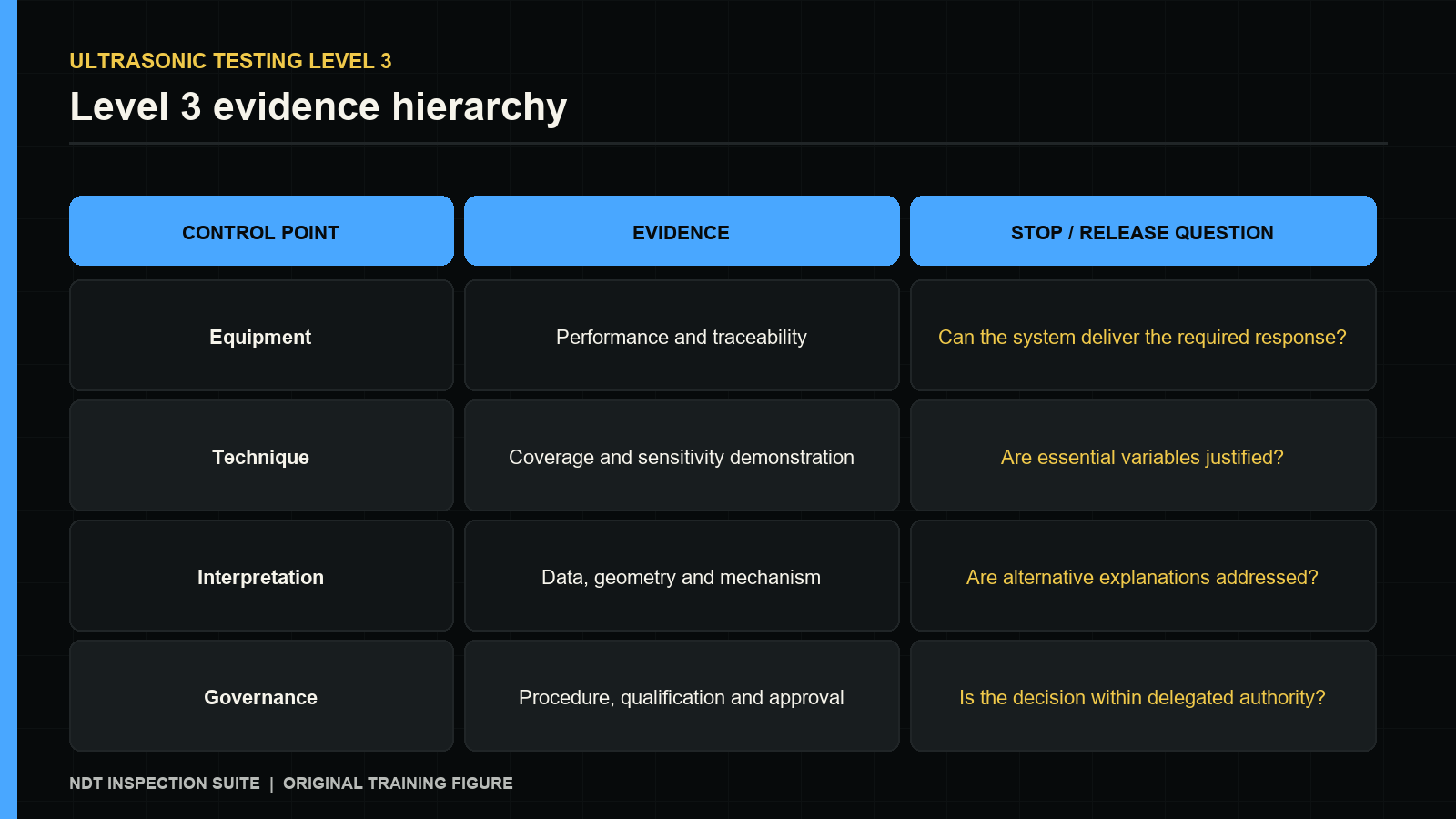

Failure modes and decision control

Weak practice commonly includes mistaking an S-scan for a sectional photograph; accepting steering beyond the array-wedge capability; overlooking grating lobes or inactive elements; reporting TOFD height from an unconfirmed phase selection; treating guided-wave screening as local acceptance examination; and losing raw data after exporting screenshots.
